The Evolution of Aerial Telecommunications
The global fiber optic market continues its exponential growth trajectory, driven by unprecedented demands for bandwidth, the proliferation of 5G networks, expanding Internet of Things (IoT) ecosystems, and the universal push toward fiber-to-the-home (FTTH) implementations.
Within this dynamic environment, aerial fiber optic cable solutions have distinguished themselves through their unique combination of rapid deployment capabilities, economic efficiency, and exceptional performance characteristics that address the most pressing challenges faced by network operators today.
Hengtong Aerial Fibre Optic Cable Products
Understanding Aerial Fiber Optic Cable Technology
Defining Aerial Fiber Optic Cable Infrastructure
Aerial fiber optic cable refers to specially engineered optical communication cables designed for overhead installation on utility poles, transmission towers, and existing power line infrastructure. Unlike underground or direct burial alternatives, aerial fiber optic cable systems leverage existing aerial rights-of-way, dramatically reducing installation complexity, timeline, and overall capital expenditure.
These specialized cables incorporate advanced materials and innovative structural designs that enable them to withstand the mechanical stresses, environmental extremes, and operational demands inherent in overhead deployments.
The fundamental distinction of aerial fiber optic cable technology lies in its self-supporting characteristics and non-metallic construction. Modern aerial fiber optic cable designs eliminate the need for separate messenger wires or metallic support structures, instead incorporating high-strength dielectric materials such as aramid yarn and fiberglass reinforced plastic (FRP) that provide the necessary tensile strength while maintaining complete electrical isolation from surrounding power infrastructure.
Core Technologies in Aerial Fiber Optic Cable Design
Contemporary aerial fiber optic cable engineering encompasses several sophisticated technologies, each optimized for specific deployment scenarios:
All-Dielectric Self-Supporting (ADSS) Cable Technology
ADSS represents the most widely deployed aerial fiber optic cable configuration globally. This innovative design philosophy eliminates all metallic components, creating a completely dielectric structure that can be safely installed in proximity to high-voltage power lines without requiring earthing or electrical isolation equipment.
ADSS aerial fiber optic cable systems incorporate ultra-high molecular weight polyethylene (UHMWPE) or aramid fiber reinforcement members that deliver exceptional tensile strength ratings ranging from 8 to 30 kN, enabling span lengths from 40 meters in distribution networks to extraordinary spans exceeding 1,800 meters across challenging geographical features such as rivers, canyons, and mountainous terrain.
The structural composition of ADSS aerial fiber optic cable typically features either central tube or stranded loose tube architectures. Central tube designs position optical fibers within a single large buffer tube filled with water-blocking gel, surrounded by the strength member and protective jacket.
Central Tube Design
This configuration offers advantages in terms of compact diameter, reduced weight, excellent waterproofing, and cost-effectiveness, making it ideal for short to medium span applications with fiber counts up to 48 cores.
Stranded Loose Tube Design
This architecture supports higher fiber counts up to 288 cores, provides superior mechanical protection for individual fiber groups, and delivers enhanced flexibility for large-span installations. The stranded design also facilitates modular expansion.
Figure-8 Self-Supporting Cable Design
Figure-8 aerial fiber optic cable represents another essential configuration, characterized by its distinctive profile combining a fiber optic core structure with an integrated metallic messenger wire. This design enables simplified installation on distribution networks where moderate span lengths and additional mechanical support are required.
The messenger component, typically steel or aluminum alloy, provides supplementary tensile strength while the fiber core maintains optimal optical performance. Figure-8 aerial fiber optic cable finds particular application in rural electrification projects, where the messenger can simultaneously serve structural and grounding functions.
Optical Ground Wire (OPGW) Integration
For power utility applications requiring both lightning protection and communication capabilities, OPGW aerial fiber optic cable solutions integrate optical fibers within the protective sheath of overhead ground wires. This dual-purpose approach maximizes infrastructure efficiency by combining electromagnetic shielding with high-capacity data transmission in a single installation.
OPGW aerial fiber optic cable systems typically feature aluminum-clad steel or aluminum alloy tubes containing optical fiber units, surrounded by additional aluminum stranding for conductivity and strength.
Application Scenarios: Where Aerial Fiber Optic Cable Delivers Exceptional Value
Telecommunications Network Expansion
Telecommunications operators face persistent pressure to expand network coverage while managing capital expenditure constraints. Aerial fiber optic cable deployment offers the optimal balance between rapid market entry and sustainable economics.
In metropolitan environments, aerial fiber optic cable enables telecommunications providers to quickly extend fiber connectivity through established utility corridors, bypassing the extensive permitting, excavation, and restoration costs associated with underground construction. Network operators deploying aerial fiber optic cable infrastructure typically achieve deployment speeds 3-5 times faster than trenched alternatives, dramatically accelerating service activation and revenue generation.
Rural and underserved communities particularly benefit from aerial fiber optic cable solutions. Geographic challenges including rocky terrain, agricultural lands, and environmentally sensitive areas that would render underground installation prohibitively expensive become tractable through overhead deployment.
Electric Utility Communication Networks
Modern power grid operations demand sophisticated communication infrastructure supporting supervisory control and data acquisition (SCADA) systems, protection relay coordination, advanced metering infrastructure (AMI), and real-time grid management applications.
Aerial fiber optic cable systems deployed along transmission and distribution networks provide utilities with dedicated, high-reliability communication channels immune to electromagnetic interference from adjacent power conductors.
The dielectric properties of ADSS aerial fiber optic cable prove especially valuable in utility environments. Unlike metallic cables requiring complex grounding and bonding systems, ADSS installations proceed with minimal electrical safety concerns, even on energized transmission lines operating at voltages exceeding 500 kV.
Electric Utility Communication Networks
Modern power grid operations demand sophisticated communication infrastructure supporting supervisory control and data acquisition (SCADA) systems, protection relay coordination, advanced metering infrastructure (AMI), and real-time grid management applications.
Aerial fiber optic cable systems deployed along transmission and distribution networks provide utilities with dedicated, high-reliability communication channels immune to electromagnetic interference from adjacent power conductors.
The dielectric properties of ADSS aerial fiber optic cable prove especially valuable in utility environments. Unlike metallic cables requiring complex grounding and bonding systems, ADSS installations proceed with minimal electrical safety concerns, even on energized transmission lines operating at voltages exceeding 500 kV.
Smart City Infrastructure Development
Smart city initiatives worldwide rely fundamentally on pervasive, high-bandwidth connectivity linking distributed sensors, cameras, traffic management systems, environmental monitoring equipment, and municipal service platforms.
Aerial fiber optic cable infrastructure provides the scalable backbone for these applications, enabling rapid deployment of connectivity to streetlight poles, traffic signals, and other elevated mounting locations throughout urban environments.
The distributed nature of smart city sensor networks aligns perfectly with aerial fiber optic cable topology. Rather than forcing underground pathway congestion, overhead fiber routes follow natural infrastructure corridors, providing direct connectivity to elevated mounting points while simplifying future expansion and maintenance access.
Products Description
Universities, medical complexes, industrial facilities, and multi-building corporate campuses frequently span extensive geographical areas where inter-building connectivity requirements exceed practical copper cable limitations.
Aerial fiber optic cable systems deliver economical solutions for campus backbone networks, providing virtually unlimited bandwidth capacity, immunity to electrical interference, and enhanced physical security compared to copper alternatives.
Installation speed represents a critical advantage in campus environments where operational disruption must be minimized. Aerial fiber optic cable projects typically complete in days rather than weeks, avoiding the extended construction timelines, landscaping damage, and access restrictions inherent in trenching operations.
Transportation Communication Systems
Modern transportation infrastructure incorporates extensive communication requirements supporting intelligent transportation systems (ITS), traffic monitoring, toll collection, emergency response coordination, and passenger information systems.
Aerial fiber optic cable installations along highways, railways, and transit corridors provide reliable connectivity immune to the electromagnetic interference generated by traction power systems and heavy electrical equipment.
Railway applications particularly benefit from aerial fiber optic cable technology. Trackside communication networks deployed via overhead messenger wires or catenary structures using specialized aerial fiber optic cable designs deliver continuous connectivity for automatic train control, positive train control (PTC), wayside equipment monitoring, and passenger WiFi services.
Technical Excellence: Engineering Advantages in Modern Aerial Fiber Optic Cable Design
Advanced Materials Engineering
Contemporary aerial fiber optic cable manufacturing incorporates materials science innovations that dramatically enhance performance, reliability, and operational longevity:
High-Performance Jacket Materials
Modern aerial fiber optic cable outer sheaths utilize specially formulated polyethylene compounds incorporating UV stabilizers, anti-tracking additives, and anti-aging agents that resist degradation from prolonged ultraviolet exposure, ozone attack, and electrical discharge.
Water-Blocking Technology
Leading aerial fiber optic cable designs incorporate multiple water-blocking strategies including water-swellable yarns, hydrophobic gels, and water-blocking tapes that prevent longitudinal moisture migration even when jacket integrity is compromised.
Optimized Strength Member Materials
Aramid fiber reinforcements deliver tensile strengths exceeding 3 GPa while maintaining flexibility and resistance to creep deformation. Fiberglass reinforced plastic (FRP) central members provide superior compression resistance and dimensional stability.
Precision Optical Performance
The fundamental purpose of aerial fiber optic cable infrastructure remains delivering exceptional optical transmission performance across diverse operating conditions:
Low-Loss Optical Fibers
Modern single-mode aerial fiber optic cable systems utilize G.652.D and G.657.A2 fibers offering typical attenuation values of 0.18-0.20 dB/km at 1550 nm wavelength. These low-loss characteristics enable extended span lengths without active regeneration.
Environmental Stability
Temperature cycling from -40°C to +70°C throughout annual operational cycles impacts optical fiber performance. Quality aerial fiber optic cable engineering maintains fiber strain below critical thresholds (typically <0.2%) through excess fiber length provisioning.
Mechanical Protection
Gel-filled loose tube constructions isolate fibers from cable-level strains, while carefully controlled stranding geometries prevent individual fiber crushing during mechanical loading events.
Enterprise-Grade Aerial Fiber Optic Cable Solutions: Comprehensive Product Portfolio
Standard ADSS Aerial Fiber Optic Cable Systems
Standard ADSS aerial fiber optic cable configurations serve the majority of telecommunications and utility network applications, offering versatile solutions for diverse deployment scenarios:
Competitive advantage
The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.
Fiber Count Options
12 to 288 fibers accommodating diverse capacity requirements from distribution networks to high-capacity backbone routes
01
Span Length Capabilities
50 to 600 meter spans covering typical distribution, sub-transmission, and transmission applications
02
Tensile Strength Ratings
8 kN to 30 kN matching span length requirements and environmental loading conditions
03
Jacket Options
Single jacket designs for benign environments, double jacket constructions for high-voltage or chemically aggressive locations
04
Temperature Ratings
-40°C to +70°C operation supporting worldwide climatic conditions
05
Each standard aerial fiber optic cable design undergoes rigorous qualification testing including tensile loading, crush resistance, impact resistance, temperature cycling, water immersion, and accelerated aging verification, ensuring reliable long-term performance in actual deployment conditions.
ADSS Cable Construction
Central strength member (aramid yarns or FRP)
Loose buffer tubes containing optical fibers
Water-blocking materials and fillers
Inner and outer protective jackets
UV-resistant and anti-tracking compounds
Mini-ADSS Aerial Fiber Optic Cable for Distribution Networks
Distribution network deployments involving shorter spans (typically 40-150 meters) and moderate fiber counts benefit from optimized mini-ADSS aerial fiber optic cable designs featuring:
Industry Solutions
Choose the plan that suits you best.
Compact Diameter
8-11 mm outside diameter minimizing wind/ice loading and aesthetic impact
01
Lightweight Construction
50-80 kg/km enabling installation on existing pole lines with minimal additional loading
02
Fiber Counts
2 to 24 fibers supporting FTTH, small cell backhaul, and distribution applications
03
Simplified Hardware
Reduced-size attachment hardware lowering installation complexity and cost
04
Mini-ADSS aerial fiber optic cable represents the optimal solution for last-mile fiber deployments, enabling rapid FTTH network expansion while minimizing per-home installation costs through streamlined construction processes and reduced material requirements.
Figure-8 Self-Supporting Aerial Fiber Optic Cable
Figure-8 aerial fiber optic cable configurations provide integrated messenger support for applications requiring moderate additional tensile strength or where separate messenger wire installation presents economic advantages:
Integrated Design
Combined fiber core and metallic messenger in single aerial fiber optic cable structure
Versatile Messenger Materials
Steel, aluminum, or copper-clad steel options matching specific application requirements
Span Capabilities
50 to 300 meters spanning typical distribution network pole spacing
Simplified Installation
Single cable placement versus separate messenger and cable installations
Figure-8 aerial fiber optic cable finds particular application in rural electrification projects, broadcast infrastructure, and private network deployments where the integrated messenger provides installation simplification and long-term mechanical performance advantages.
Specialized High-Performance Aerial Fiber Optic Cable
Extreme environment applications demand specialized aerial fiber optic cable designs incorporating enhanced protective features:
High-Voltage Environment ADSS
Double-jacket constructions with specialized outer jacket compounds providing superior electrical tracking resistance for installations in proximity to transmission lines operating at voltages exceeding 220 kV.
These aerial fiber optic cable designs incorporate additional anti-tracking additives and enhanced thickness outer jackets ensuring 25+ year service life despite continuous electrical stress exposure.
Rodent-Resistant Aerial Fiber Optic Cable
Armor layers or glass-reinforced jacket materials protecting against rodent damage in areas with aggressive squirrel, woodpecker, or other wildlife populations.
These protective features ensure network reliability in challenging biological environments where standard aerial fiber optic cable designs prove vulnerable to animal-induced failures.
Fire-Resistant Aerial Fiber Optic Cable
Enhanced flame-retardant jacket materials meeting stringent fire performance standards for installations in industrial facilities, petrochemical complexes, or urban environments requiring maximum fire safety.
These specialized aerial fiber optic cable constructions maintain circuit integrity during fire events, supporting critical communications when needed most.
Quality Assurance Excellence: Ensuring Reliable Aerial Fiber Optic Cable Performance
Comprehensive Manufacturing Quality Control
Leading aerial fiber optic cable manufacturers implement multi-stage quality verification processes ensuring every cable meets or exceeds published specifications:
Raw Material Qualification
All incoming materials including optical fibers, strength members, buffer tubes, water-blocking materials, and jacket compounds undergo rigorous incoming inspection verifying compliance with material specifications. This initial quality gate prevents defective materials from entering production processes.
In-Process Monitoring
Real-time process control systems monitor critical manufacturing parameters including fiber tension, tube fill levels, stranding geometry, jacket concentricity, and dimensional tolerances throughout production. Automated systems immediately flag parameter deviations, enabling immediate corrective action before significant production quantities are affected.
Comprehensive Final Testing
Each aerial fiber optic cable production run undergoes complete final testing verification including:
- Optical Performance: Attenuation, chromatic dispersion, and polarization mode dispersion measurements
- Mechanical Performance: Tensile strength, crush resistance, impact resistance, and bend performance
- Environmental Performance: Temperature cycling, water immersion, and accelerated aging testing
- Dimensional Verification: Cable diameter, jacket thickness, and length accuracy measurements
Main Products

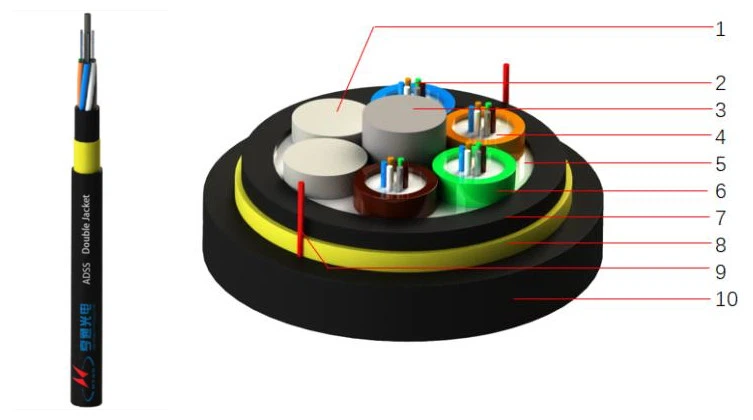

Multi tube Double Jacket ADSS Cable
1-Filler rod
2-Optical fiber
3-Central strength member
4-Tube Filling Compound
5-Cable Filling Compound
6-Loose Tube
7-Inner sheath
8-Aramid yarn
9-Tear rope
10-Outer sheath

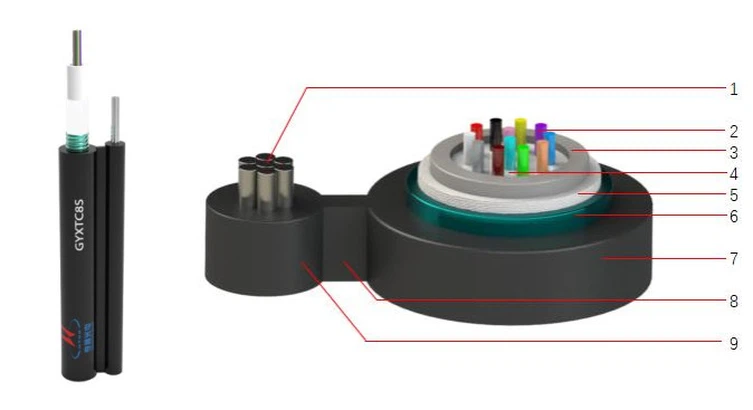

Uni-tube Figure 8 Aerial Cable
1-Steel wire
2-Optical fiber
3-Loose Tube
4-Tube Filling Compound
5-Water blocking tape
6-Metal tape
7-Outer sheath
8-Web
9-Outer sheath
Multi tube Single Jacket Figure 8 Aerial Cable
