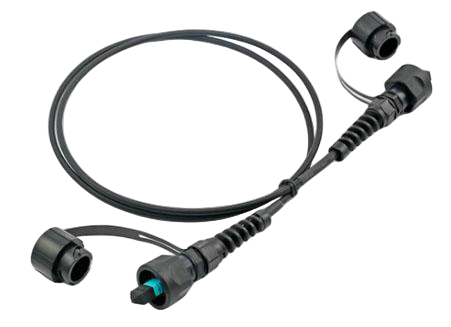

ODVA-MPO Waterproof Fiber Optic Jumper Cable
This high-protection outdoor optical interconnection product is specially designed for harsh outdoor communication scenarios, widely supporting 100G, 200G, 400G and 800G high-speed data transmission for tower tops, communication base stations, outdoor cabinets and edge computing nodes.
It adopts industry-standard ODVA reinforced connector with IP67 waterproof and dustproof grade, delivering stable excellent optical performance with insertion loss ≤0.2dB, and supporting over 1000 mating cycles for long-term reliable use. Manufactured and fully factory-tested to meet ICE, ISO and ROHS standards, it covers full multimode (OM1-OM5) and single-mode (OS1-OS2) fiber types, equipped with high-strength fatigue-resistant fiber and wear-resistant flame-retardant PU sheath for superior tensile, corrosion and weather resistance. It is the ideal core solution for waterproof optical interconnection of outdoor communication equipment.
Product Technical Advantages:
- Designed for harsh outdoor scenarios, supporting 100G/200G/400G/800G high-speed transmission for tower tops, base stations and edge nodes.
- Adopts industry-standard ODVA reinforced connectors with IP67 waterproof and dustproof grade, insertion loss ≤0.2dB and over 1000 mating cycles.
- 100% factory manufactured and tested to meet ICE, ISO and RoHS standards.
- Covers full OM1-OM5 multimode and OS1-OS2 single-mode fiber types.
- Features high-strength fatigue-resistant fiber and wear-resistant flame-retardant PU sheath, with superior tensile, corrosion and weather resistance.
Typical Structural Parameters：
| Model and Grade | Standards | Low Loss | ||||
| Connector Type | Transmission Mode | End Face Type | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| MPO Connector | Single-mode | APC | ≤0.50 | ＞65 | ≤0.30 | ＞65 |
| UPC | ≤0.50 | ＞55 | ≤0.30 | ＞55 | ||
| Multi-mode | PC | ≤0.35 | ＞30 | ≤0.25 | ＞35 | |
