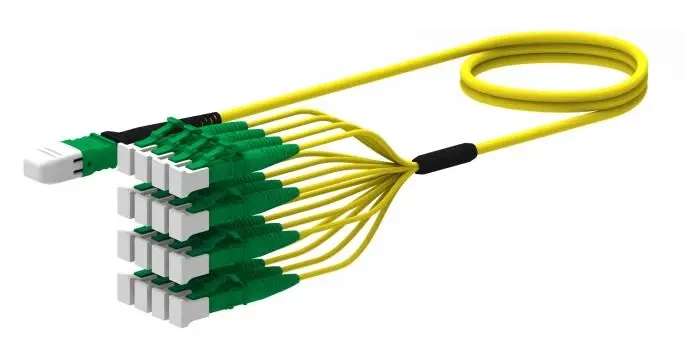

MPO (1×N) Breakout Fiber Optic Cable Assembly

Details:

MPO/MTP trunk breakout fiber optic jumper cables are key breakout components for data center optical interconnection systems, widely supporting 100G, 200G, 400G and 800G high-speed data transmission. Adopting a 1×N breakout architecture for flexible connection between trunk optical cables and multiple terminal devices, they meet the growing demands of data centers for high-density cabling, rapid deployment and flexible network expansion. With high-precision splitters for lossless signal distribution, they ensure 100% compatibility with QSFP-DD, OSFP and other mainstream high-speed optical devices. 100% factory pre-terminated and tested to meet ICE, ISO and ROHS standards, they cover full OM1-OM5 multimode and OS1-OS2 single-mode fiber types, supporting 8-288 core configurations with 12/24/36-core MPO/MTP connectors for high-density space saving. With customizable specifications and a dust-proof, compression & tensile-resistant structure, they deliver high reliability, flexibility and plug-and-play rapid deployment for high-density optical interconnection systems in data centers, cloud computing facilities and other high-speed transmission scenarios.

Send Inquiry

Download

Description

Technical Parameters

MPO (1×N) Breakout Fiber Optic Cable Assembly

MPO/MTP trunk breakout fiber optic jumper cables are key breakout components for data center optical interconnection systems, widely supporting 100G, 200G, 400G and 800G high-speed data transmission.

Adopting a 1×N breakout architecture for flexible connection between trunk optical cables and multiple terminal devices, they meet the growing demands of data centers for high-density cabling, rapid deployment and flexible network expansion. With high-precision splitters for lossless signal distribution, they ensure 100% compatibility with QSFP-DD, OSFP and other mainstream high-speed optical devices.

100% factory pre-terminated and tested to meet ICE, ISO and ROHS standards, they cover full OM1-OM5 multimode and OS1-OS2 single-mode fiber types, supporting 8-288 core configurations with 12/24/36-core MPO/MTP connectors for high-density space saving. With customizable specifications and a dust-proof, compression & tensile-resistant structure, they deliver high reliability, flexibility and plug-and-play rapid deployment for high-density optical interconnection systems in data centers, cloud computing facilities and other high-speed transmission scenarios.

Product Technical Advantages:

100% factory pre-terminated and tested to guarantee transmission performance.
Provides optical fiber connections from 8 to 288 cores, featuring plug-and-play and rapid deployment.
Multiple fiber specifications such as multi-mode and single-mode are optional to meet different configuration requirements of customers.
Adopts 12-core, 24-core and 36-core MPO/MTP connectors to achieve high-density integration and save space.
The connector is designed with dustproof, pressure-resistant and tensile structure, ensuring high reliability, flexibility and scalability of the product.

Typical Structural Parameters:

Model and Grade			Standards		Low Loss
Connector Type	Transmission Mode	End Face Type	IL(dB)	RL(dB)	IL(dB)	RL(dB)
MPO Connector	Single-mode	APC	≤0.50	＞65	≤0.30	＞65
	Single-mode	UPC	≤0.50	＞55	≤0.30	＞55
	Multi-mode	PC	≤0.35	＞30	≤0.25	＞35
