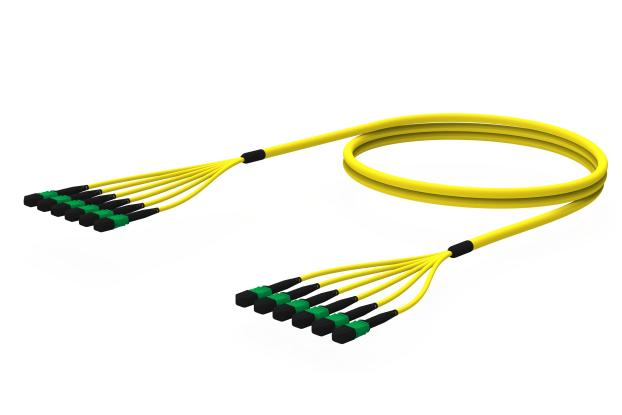

MPO (N×N) Breakout Fiber Optic Cable Assembly
MPO breakout fiber optic cable assemblies are core breakout components for multi-user bidirectional optical interconnection scenarios, widely supporting 100G, 200G, 400G and 800G high-speed data transmission.
Adopting an N×N bidirectional breakout architecture to realize bidirectional optical data interaction between trunk links and multiple terminal equipment, they meet the growing demands of data centers, optical access networks and high-density computing environments for multi-channel parallel transmission and efficient bidirectional signal transmission. With high-precision bidirectional splitters for lossless signal distribution, they ensure 100% compatibility with ONU optical modules, QSFP-DD high-speed modules and other mainstream optical devices.
100% factory pre-terminated and tested to meet ICE, ISO and ROHS standards, they cover full OM1-OM5 multimode and OS1-OS2 single-mode fiber types, supporting 8-288 core configurations with customizable specifications. Featuring a dust-proof, compression & tensile-resistant connector design to ensure high reliability of bidirectional transmission, they enable swift deployment and stable operation of high-density multi-user bidirectional optical systems in data centers, optical access networks, 5G fronthaul/backhaul and other related scenarios.
Product Technical Advantages:
- Adopts an N×N bidirectional branching architecture to realize synchronous interaction of uplink and downlink optical signals for multiple terminals, suitable for multi-user bidirectional communication scenarios.
- 100% factory pre-terminated and tested, ensuring stable and consistent bidirectional transmission performance.
- Available with fiber configurations ranging from 8 to 288 cores, supporting parallel access of multiple terminals. Plug-and-play design greatly improves deployment efficiency.
- Compatible with multi-mode, single-mode and other optical fiber specifications to meet transmission distance and bandwidth requirements of diverse application scenarios.
- Features a dustproof, pressure-resistant and tensile bidirectional connector structure, ensuring high reliability of bidirectional optical signal transmission.
Typical Structural Parameters:
| Model and Grade | Standards | Low Loss | ||||
| Connector Type | Transmission Mode | End Face Type | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| MPO Connector | Single-mode | APC | ≤0.50 | ＞65 | ≤0.30 | ＞65 |
| UPC | ≤0.50 | ＞55 | ≤0.30 | ＞55 | ||
| Multi-mode | PC | ≤0.35 | ＞30 | ≤0.25 | ＞35 | |
