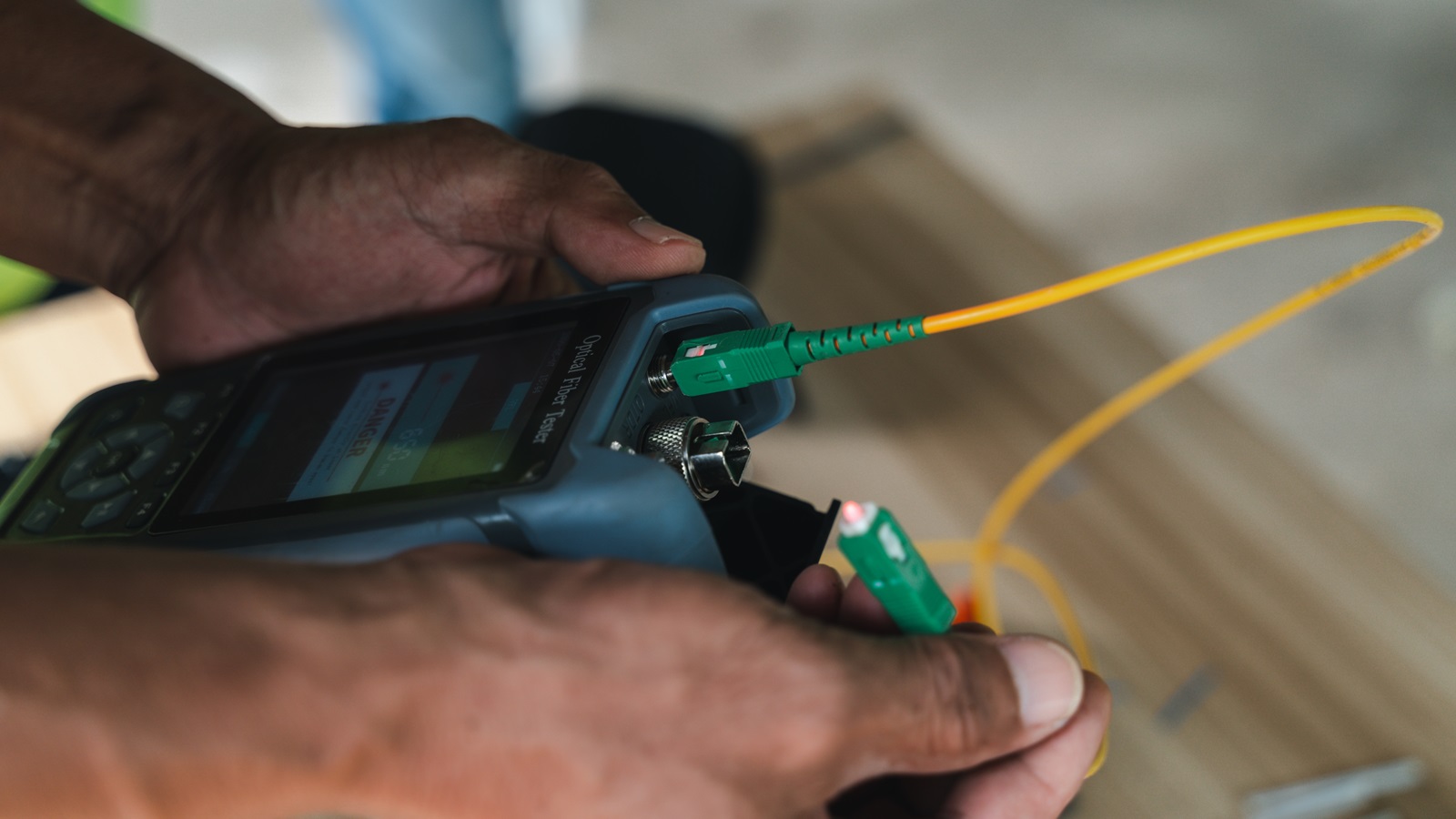

Fiber optic cable installation is just the beginning. The key to ensuring long-term network reliability lies in rigorous acceptance testing and continuous intelligent monitoring. This article introduces the core methods for how to test fiber optic cable networks and monitor them effectively.
Comprehensive fiber optic cable testing should achieve the following objectives:
- Verify that link loss meets system requirements
- Identify and locate physical defects (breaks, bends, splicing issues)
- Confirm connector end-faces are clean and undamaged
- Establish baseline data for future comparison
Acceptance Testing Process
End-Face Inspection and Cleaning
Use an end-face inspection microscope to examine connector end-faces for dust, oil, pits, or scratches. Re-inspect after cleaning. This prevents false high-loss readings and stops contamination from spreading to equipment ports.
VFL Visual Fault Location
VFL injects visible light into the fiber, with light leakage indicating breaks, cracks, or excessive bending. Used for rapid preliminary checks to locate obvious physical faults.
OTDR Testing and Baseline Establishment
Principle: OTDR sends light pulses and analyzes backscattered signals
Function: Generates link traces showing the location and loss of each splice point and connector; measures link length; locates remote fault points
Recording requirements: Save test traces at different wavelengths, fiber core numbers, test dates, and environmental conditions as completion documentation
Important Note: OTDR should be used after completing end-face inspection and VFL detection as the final step in establishing an authoritative baseline.
Monitoring Aspects
Network operating environments change. Construction damage, environmental stress, or equipment aging can all produce new faults. Relying on user complaints to discover problems often means service interruptions have already occurred.
Core functions of Fiber Monitoring Systems (FMS):
Automated OTDR: Continuously runs OTDR tests on spare fiber cores, comparing real-time data against baseline
Fault location: Immediately provides precise distance when fiber breaks are detected, significantly shortening repair time
Predictive maintenance: Monitors slow upward trends in splice point loss, alerting before interruptions occur
The effectiveness of monitoring systems depends on baseline quality. Clean, standardized acceptance data enables systems to accurately distinguish real degradation from measurement noise.
Performance Verification Testing
While OTDR displays physical characteristics, the following tests verify actual performance when you test fiber optic cable:
Insertion Loss Testing: Uses light source and power meter to measure end-to-end loss, confirming it's within equipment allowable range
Optical Return Loss (ORL) Testing: Measures total reflected light. Excessive reflection affects laser stability, particularly critical in high-speed systems (GPON, 5G fronthaul)
These provide the most direct pass/fail criteria. Even with normal OTDR traces, links exceeding loss budgets cannot guarantee stable system operation.
It's recommended to archive loss/ORL results with OTDR traces using unified numbering for easier troubleshooting later.
Key Considerations
Keep test equipment and patch cords clean. Dirty patch cords introduce false loss, causing misdiagnosis
Accurate fiber core numbering, routing information, and port records convert fault distances into actionable physical locations
Follow unified procedures and standards. Ensure test results from different personnel at different times are comparable, supporting long-term trend analysis
Testing Timing
Formal testing is required in the following situations:
Installation completion: Acceptance and baseline establishment
Post-repair: Confirm repair quality and check for new problems introduced
Planned maintenance: Detect gradual degradation in advance
Troubleshooting: Determine whether problems originate from the fiber physical layer
A fiber optic cable checker combined with proper testing methodology ensures your network maintains optimal performance throughout its operational life.
