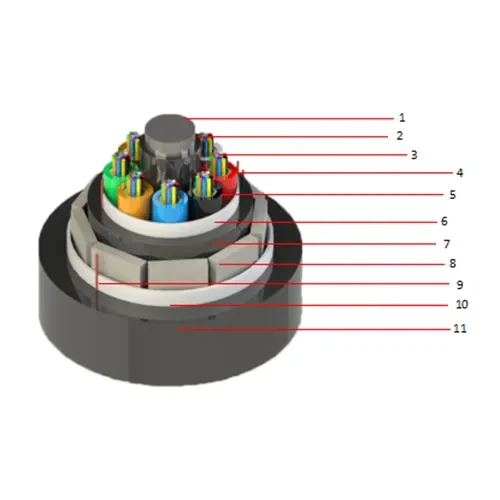

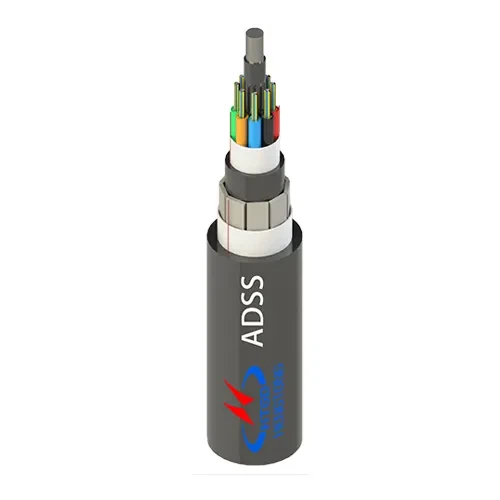

AREIAL-Multitube Double Jacket Flat FRP Armor ADSS
1-Central strength member
2-Cushion Layer
3-Optical fiber
4-Tube Filling Compound
5-Loose Tube
6-Water-Blocking Tape
7-Inner Jacket
8-Flat FRP Strength Member
9-Rip Cord
10-Outer Water-Blocking Tape
11-Outer Jacket
Product features
All medium non-metal structure, to prevent strong electric erosion and natural environment lightning intrusion, high safety performance.
Support large gap (about 800m) self-supporting overhead laying, eliminating the installation of steel strand, high construction efficiency.
High-Strength Flat FRP Armoring: The outer layer is uniformly wrapped with nine layers of flat FRP tape as the armor, significantly enhancing tensile strength, bending stiffness, and rodent resistance.
Double Water-Blocking Design: Water-blocking tape is applied longitudinally before both the inner and outer sheaths, creating two radial moisture barriers.
Easy Access for Installation: Two red rip cords are placed beneath both the inner and outer sheaths to facilitate quick and easy jacket stripping during installation.
Fiber Transmission Performance
|
Cabled Optical fiber (dB/km) |
62.5um (850nm/1300nm) |
50um (850nm/1300nm) |
G.652 (1310nm/1550nm) |
G.655 (1550nm/1625nm) |
|
Max attenuation |
3.5/1.5 |
3.5/1.5 |
0.36/0.21 |
0.21/0.26 |
|
Typical value |
3.0/1.0 |
3.0/1.0 |
0.35/0.20 |
0.20/0.24 |
Technical Characteristics
| Fiber count | Min.Bend Radius(mm) | Cable diameter | Cable weight | Tensile strength | Crush | |
| During installation | After installation | |||||
| 24 | 20D | 15D | 13.5 | 159 | 2.7/8.0 | 700/2200 |
| 48 | 20D | 15D | 14.2 | 186 | 3.4/8.5 | 700/2200 |
| 96 | 20D | 15D | 14.8 | 206 | 3.4/8.5 | 700/2200 |
| 144 | 20D | 15D | 17.5 | 279 | 4.2/12.0 | 700/2200 |
Notes:
1.D denotes the diameter of the cable;
2.The above parameters are typical value;
3.The cable spec can be designed according to customer's requirement.
Environmental Characteristic
• Transport/storage temperature: -30℃ to +60℃
Applications
• Duct and non-self supporting aerial, Electric environment, lightning prone area.
Packaging and Drum
• Standard length: 2,000m; other lengths are also available.
• The cables are packed in wooden drums,can also be based on customer requirements.
