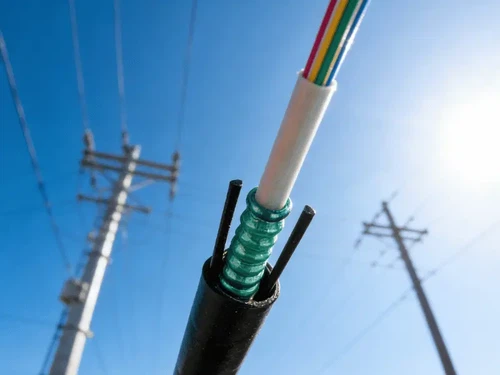

A lot of buyers and network teams still make fiber decisions off half-true rules of thumb. Single-mode goes forever, multimode is short, just use LR everywhere. Sometimes you get lucky, but when you don't, it shows up as rework, random CRC or FCS errors, link flaps, or those "it worked yesterday" tickets.
So when we say fiber optic cable limitations, we're not talking about one magic distance number. We're talking about what actually runs out first on a real link: power margin or signal quality margin. If either one fails, you've hit the real limit.
Let me start with a real-world vibe. In a long thread from broadcast engineers, one person basically says they spend time pre-cleaning and leaving jumpers in place, because nine out of ten times the problem is dirty jumpers or connectors, not the in-wall fiber.
That's why I'd rather help you think like a link than hand you a generic distance chart.
The boring math that saves projects: count the losses you actually have
Here's the part people skip. On many enterprise and data center links, connectors and patching eat the budget long before the glass attenuation does.
Typical loss allowances
| Loss item | Typical allowance (dB) | Notes |
|---|---|---|
| Connector, most single-fiber connectors | 0.3 dB each | Planning value |
| MPO or multi-fiber connector maximum | 0.75 dB | Higher by design and spec |
| Single-mode fusion splice | 0.15 dB each | Conservative planning value |
| Multimode mechanical splice maximum | 0.3 dB | Often seen in quick repairs |
FOA loss budget guidance is the basis for these planning numbers.
A quick read on that table: if you have just six connection points across panels and cross-connects, you can burn a few dB without touching the main cable run.
Reddit has a perfect "why specs feel slippery" example. Someone discussing OM3 and 10G-SR says a dirty end might only get about 270 meters, while a perfect one might reach 350 meters. Another commenter points out the standard guarantees 300 meters, and beyond that you're operating at your own risk.
That's the real story: distance is a cleanliness, patching, and margin story.
A small link budget example you can steal
Let's do a simple single-mode example so this doesn't stay theoretical.
Example loss build-up: 10G LR, 1310 nm, SMF, 12 km
| Component | Assumption | Loss |
|---|---|---|
| Fiber attenuation at 1310 nm | 0.5 dB per km times 12 km | 6.0 dB |
| Connectors | 4 times 0.3 dB | 1.2 dB |
| Fusion splices | 6 times 0.15 dB | 0.9 dB |
| Patch panel allowance | fixed | 0.5 dB |
| Design margin | fixed | 3.0 dB |
| Total estimated link loss | 11.6 dB |
This uses FOA planning guidance for connector and splice allowances.
Here's the same thing as a quick visual:
Fiber: 6.0 dB
Margin: 3.0 dB
Connectors: 1.2 dB
Splices: 0.9 dB
Extra: 0.5 dB
What this means in plain English: if your optic budget is around 10 dB, you're already in trouble. If it's higher, you might pass, but you're living on good hygiene and stable patching.
This is why we've seen links that pass once, then get flaky after a couple of moves.

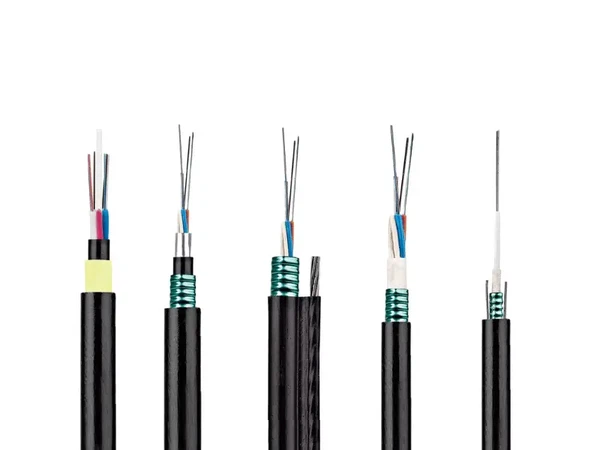

Speed limits aren't really glass limits, they're optic and spec limits
People talk about a fiber optic cable speed limit like the fiber itself caps it. In practice, most teams hit the limit because they picked optics that don't match the run, or because patching and cleanliness destroys the margins.
Common 10G reach examples
| Optic type | Typical reach | Fiber type |
|---|---|---|
| 10G | up to 300 m on OM3, 400 m on OM4 | MMF |
| 10G | 10 km | SMF |
| 10G | 40 km | SMF |
| 10G | about 80 km | SMF |
10G SFP+ module datasheet lists these common reaches and conditions.
Now the fun part: link up doesn't mean healthy. There's a Reddit troubleshooting post where someone had OM3 but LR optics. Traffic passed, but they saw packet failures and CRC errors on one end. Another commenter bluntly says you can't mix SR and LR, and if it's OM3 or OM4 it needs SR on both ends.
That's exactly the kind of failure that feels mystical until you treat optics, fiber type, patching, and margins as one system.
The field problems that quietly become your limitations
Bend radius and "looks neat" cable management
FOA's rule of thumb is simple. During pulling or under tension, minimum bend radius is about 20 times the cable diameter. After installation, long-term minimum bend radius is about 10 times the cable diameter.
| Condition | Minimum bend radius guideline |
|---|---|
| Under tension, install or pulling | about 20 times cable OD |
| Long-term after install | about 10 times cable OD |
In a fiber troubleshooting thread, someone points out a simple cable tie may be causing a macro-bend and signal loss.
In another thread about a mystery patch panel port, someone reminds the group to make sure a cabinet door isn't bending the patch cords when you close it.
Small mechanical issues like that can turn into big optical penalties.
Dirty connectors: the most boring root cause, and it wins a lot
That broadcast engineering thread is worth repeating. They intentionally leave jumpers in place and do seasonal cleaning because most issues are dirt-related.
FOA's connector inspection and cleaning guidance describes microscope-based inspection and cleaning workflow, and Fluke also emphasizes inspecting endfaces before connecting, even after cleaning.
A practical way to think about it is this. When a link is borderline, don't start by swapping optics. Start by assuming the endfaces are guilty until proven innocent.
Testing traps: "light test" is not a pass
This one shows up constantly. Someone says they "light tested and it's fine," and what they really mean is they used a VFL. In the same troubleshooting thread, a commenter literally calls this out and says many techs think that's all you need.
A more reliable flow is:
Clean and inspect endfaces first, because otherwise every measurement lies.
Measure insertion loss with a light source and power meter to validate the budget.
Use OTDR to locate events when loss is high or the issue is intermittent.
Check DOM receive power and error counters to catch "it links but it's sick" cases.
One more limitation people forget: sometimes the signal is too strong
Most people worry about not enough power. But with higher-reach optics, receiver overload can be the real problem.
In one networking thread, a commenter says the only time they had to attenuate was a roughly 49 km run through DWDM, where an 80 km optic was a bit too much.
In the mystery patch panel port thread, someone mentions a media converter link where they had to slightly unplug to introduce loss just to get link light.
That's a great counterexample because it breaks the usual "more power is always better" assumption.
FAQ
Q: What are the benefits and limitations of copper and fiber optic cabling?
A: Copper is great when you need short runs, quick terminations, and power delivery like PoE. It's usually cheaper and easier inside a rack or a single room. The tradeoff is that copper hits bandwidth–distance limits faster and is more sensitive to EMI and grounding issues.
Fiber is the go-to when you need longer reach, high bandwidth, and strong immunity to electromagnetic interference. The tradeoff is that fiber performance depends a lot more on workmanship-clean endfaces, bend control, and managing patch points and loss budgets.
Q: What determines the fiber optic cable distance limit in real projects?
A: The real distance limit is set by the link budget, not a single "km number." You're limited by how much loss your optics can tolerate after you add fiber attenuation, connector loss, splice loss, patch panel loss, and a safety margin for aging and future repatching. In many enterprise and data center builds, connectors and patching consume the budget long before fiber attenuation does.
Q: Is there a universal fiber optic cable length limit?
A: Not really. The practical length limit depends on your transceivers, data rate, fiber type, wavelength, how many connection points you have, and how clean and mechanically stable the installation is. Two links with the same fiber length can behave very differently if one has extra patch panels, tight bends, or dirty connectors.
Q: What do people mean by fiber optic cable limitations?
A: It's shorthand for the real-world boundaries that cap distance, speed, and reliability. Most of the time those limits come from a mix of loss budget, dispersion and noise tolerance, reflections, bend-related losses, connector contamination, and how well the optics match the fiber and the run.
Q: Is there a true fiber optic cable speed limit?
A: The "speed limit" is mostly a system limit, not a glass limit. Fiber can carry huge bandwidth, but the stable speed you can run depends on transceiver type, dispersion tolerance, OSNR headroom, reflections, and the total loss budget. That's why a link might run very high speeds over short distances, but need different optics or architecture to hold the same speed over longer distances.
Q: What are fiber optic cable temperature limits, and why do they matter?
A: Temperature limits aren't just about the cable jacket rating. Temperature swings can change mechanical stress, increase microbending risk, and affect routing and closures, which can raise loss or create intermittent issues. In outdoor builds, pay attention to both installation temperature range and operating temperature range, and leave enough margin for long-term drift.
Q: What are the most common limitations of fiber optic cable in the field?
A: In many environments, the biggest practical limits are self-inflicted: dirty endfaces, too many patch points, tight bends, poor splice quality, and cable management that adds stress. These issues reduce the margin your design assumes, so links that "barely pass" during turn-up often become unreliable after routine repatching.
Q: What is the single mode fiber optic cable length limit?
A: Single-mode fiber generally supports longer distances than multimode, but the usable length limit is still determined by the link budget and the system design. Your optics class, wavelength, dispersion tolerance, whether you use amplification or regeneration, and how many connectors/splices you have will set the real ceiling.
Q: Is single-mode fiber optic cable length limit different from "single mode" without the hyphen?
A: No-single mode fiber optic cable length limit and single-mode fiber optic cable length limit are the same idea. People search both spellings, but they refer to the same engineering question: how far a single-mode link can go under a specific optics and loss/dispersion budget.
Q: What is the biggest limiting factor on fiber-optic cable length?
A: Most often it's one of two things, depending on the scenario. In enterprise and data center links, the loss budget usually runs out first because connectors, patch panels, and splices add up fast. In higher-speed and longer-distance systems, signal quality limits can dominate-dispersion and noise accumulation can break the link even when receive power looks adequate. The link has to arrive both bright enough and clean enough, and whichever requirement fails first sets the real limit.
Q: What is a fiber optic cable, and what are its main advantages over copper cables?
A: A fiber optic cable is a transmission medium made of extremely thin strands of glass or plastic that carry data in the form of light signals. Compared with traditional copper cables, fiber optic cables offer much higher transmission speeds, greater bandwidth, and longer transmission distances. They also provide more stable performance and are far less susceptible to electromagnetic interference. Because of these advantages, fiber optic cables are widely used in internet infrastructure, telecommunications, and high-speed network connections. Depending on transmission needs, they are generally classified into two types: single-mode fiber for long-distance communication and multi-mode fiber for shorter-distance applications.
