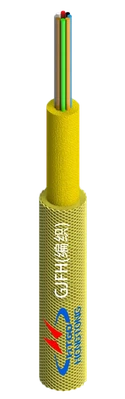

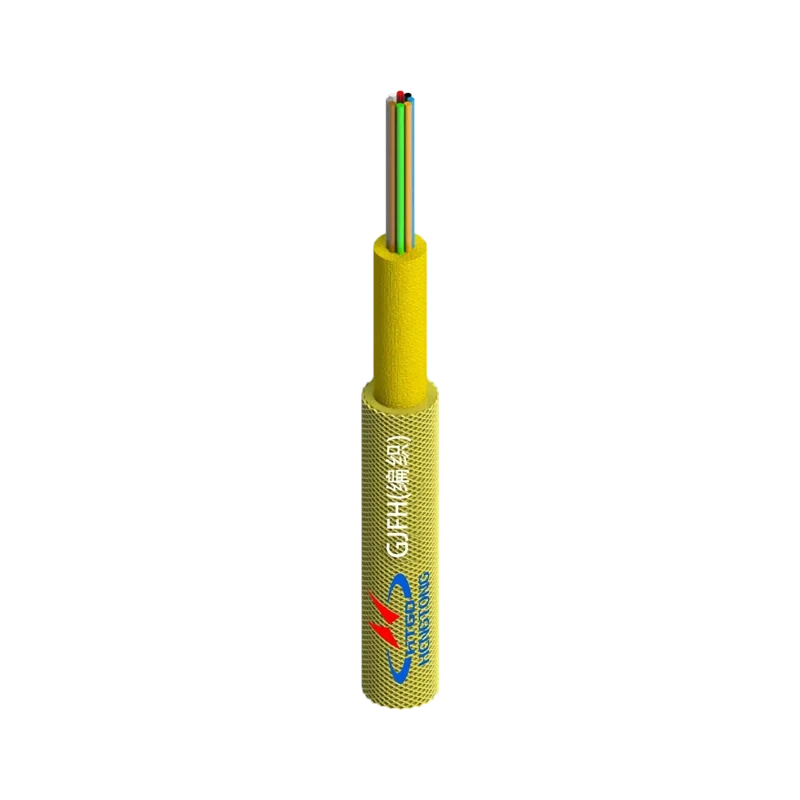

MPO braided fiber cable
GJFH(V)

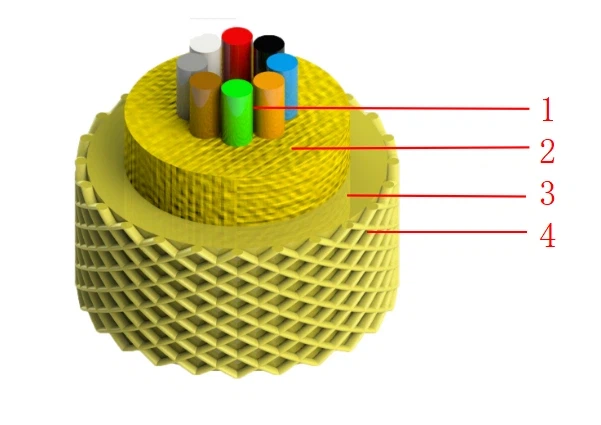

1-Optical fiber
2-Strength member
3-Sheath
4-Braided mesh
Product features
High Density & Plug-and-Play: Each connector supports 12/24 fibers for parallel transmission, enabling multi-fiber connection in a single plug-and-unplug operation. With 100% factory pre-terminated testing, field splicing is eliminated, significantly improving deployment efficiency. It is compatible with 40G/100G/400G high-speed links.
Strong Mechanical Performance: The aramid braided layer provides tensile strength up to hundreds of Newtons, featuring excellent flexibility and a small bending radius (dynamic/static performance complies with TIA standards). It is suitable for cabling inside cabinets, on cable trays, and under raised floors. Its non-metallic armor-free design offers a weight advantage, facilitating construction and secondary adjustments.
Electrical & Environmental Friendliness: Non-metallic structure with no electromagnetic interference (EMI). LSZH jacket is low-smoke and halogen-free, meeting fire safety requirements for equipment rooms. Typical operating temperature ranges from -20℃ to +70℃.
Applications
- MPO MPO or MPO LC breakout connections between backbones and equipment in large data centers with TOR/EOR architectures;
- High density optical interconnections in 5G base station equipment rooms and cloud computing centers;
- Scenarios with stringent requirements for transmission stability and deployment speed, such as finance and high performance computing (HPC) centers.
Fiber Transmission Performance
|
Cabled Optical fiber |
62.5um (850nm/1300nm) |
50um (850nm/1300nm) |
G.652 (1310nm/1550nm) |
G.657 (1310nm/1550nm) |
|
Max attenuation(dB/km) |
3.5/1.5 |
3.5/1.5 |
0.4/0.3 |
0.4/0.3 |
|
Typical value(dB/km) |
3.0/1.0 |
3.0/1.0 |
0.36/0.22 |
0.36/0.22 |
Technical Specification
| Cable type | Fiber counts | Tensile force (N) | Flattening force (N/100mm) | Minimum bending radius (mm) | Optical cable diameter (mm) | |||
| short term | Long term | short term | Long term | When installing | After installation | |||
| GJFH(V) | 4 | 150 | 70 | 500 | 250 | 20D | 10D | 3 |
| GJFH(V) | 8 | 150 | 70 | 500 | 250 | 20D | 10D | 3 |
| GJFH(V) | 12 | 150 | 70 | 500 | 250 | 20D | 10D | 3 |
| GJFH(V) | 24 | 150 | 70 | 500 | 250 | 20D | 10D | 3.5 |
Notes:
1. D denotes the diameter of the cable;
2. The above parameters are typical value;
3. The cable spec. can be designed according to customer's requirement.
Environmental Characteristic
• Transport/storage temperature: -20℃ to +70℃
Cable Packing
• Standard length:1,000m or 2,000m; other lengths are also available.
• The cables are packed in wooden drums,or follow customer requirements.
Transportation
• Usually the shipping method is ship, if you need other shipping methods, please contact us.
Service
• We can guarantee that the production will be carried out according to your requirements, and you can contact us at any time if you have any questions or quality problems, and we will give you a satisfactory reply and treatment.
Partner
FAQ
Q: What is a braided MPO fiber optic cable?
A: It is a pre-terminated multi-fiber assembly with an aramid (Kevlar) braided reinforcing layer, providing high tensile strength, flexibility, and high-density optical transmission for data center and equipment room cabling.
Q: What fiber counts are available?
A: Common configurations include 12-core and 24-core MPO connectors, supporting parallel transmission for 40G, 100G, and 400G networks.
Q: What are the advantages of aramid braiding?
A: The braided structure offers high tensile strength, good flexibility, small bending radius, and light weight compared with armored cables. It is ideal for cabinet, cable tray, and underfloor routing.
Q: Is this cable suitable for high-speed networks?
A: Yes. It supports 40G/100G/400G transmission and is widely used in TOR/EOR architectures, cloud computing centers, and 5G base stations.
