Description

Technical Parameters

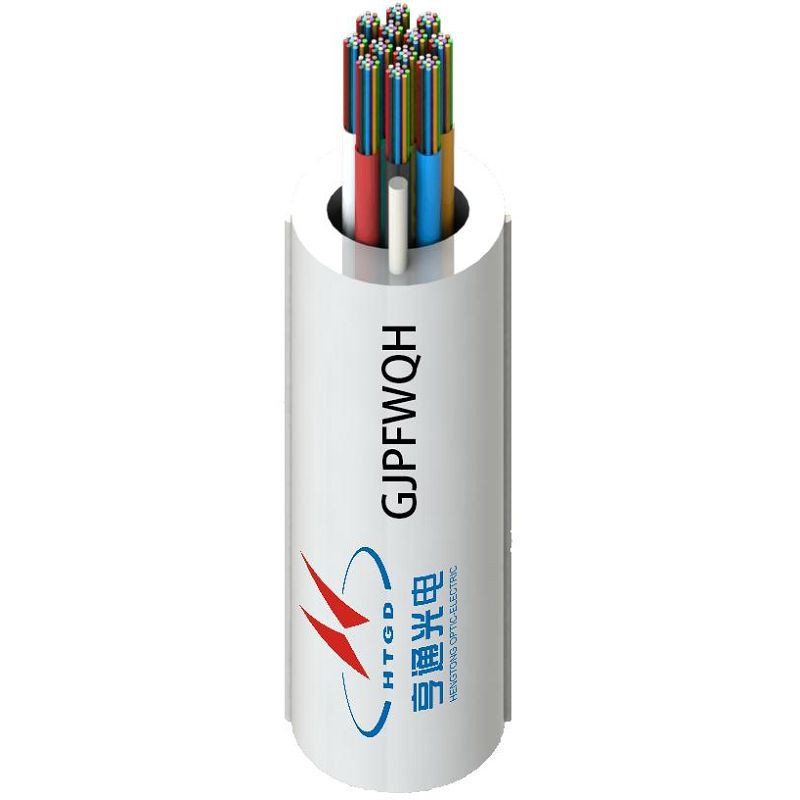

Easy Branches Indoor Riser Cable
GJPFWQH

1-Micro-module and fibers

2-Inner Sheath

3-Strength member

4-Extract point marker

Product features

Excellent mechanical and environmental performance

All dielectric and dry core structure improve the efficiency and cleanness in deployment

Micro modules can be easily stripped off without tools to get the fibers

Small diameter, light weight, small occupied space

The FRP makes cable strong tension and anti-bend advantages

Data transmission with high reliability, low cost, easy to connect, etc

Applications

Indoor horizontal and vertical cabling

Fiber Transmission Performance

Cabled Optical fiber

62.5um

(850nm/1300nm)

50um

(850nm/1300nm)

G.652

(1310nm/1550nm)

G.657

(1310nm/1550nm)

Max attenuation(dB/km)

3.5/1.5

0.4/0.3

Typical value(dB/km)

3.0/1.0

0.36/0.22

Technical Specification

Cable type	Fiber counts	Tensile force (N)		Flattening force (N/100mm)		Minimum bending radius (mm)		Optical cable diameter (mm)
Cable type	Fiber counts	short term	Long term	short term	Long term	When installing	After installation	Optical cable diameter (mm)
GJPFWQH	12	500	250	1000	500	20D	10D	7.5
GJPFWQH	24	500	250	1000	500	20D	10D	8.0
GJPFWQH	36	500	250	1000	500	20D	10D	9.0
GJPFWQH	48	500	250	1000	500	20D	10D	9.0

Notes

1. D denotes the diameter of the cable;

2. The above parameters are typical value;

3. The cable spec. can be designed according to customer's requirement;

Environmental Characteristic

• Transport/storage temperature: -20℃ to +70℃

Cable Packing

• Standard length:1,000m or 2,000m; other lengths are also available.

• The cables are packed in wooden drums,or follow customer requirements.

Transportation

• Our shipping services cover the world, so no matter where you are, we can get your products to your destination quickly and efficiently. Whether you need sea, air or land transportation, we can provide you with the best quality transportation solutions to ensure the safety of your products during transportation.

Partner

FAQ

Q: What is the difference between easy branching optical cables and ordinary optical cables?

A: Compared to ordinary optical cables, easy branching optical cables are easier to branch and route, which can effectively reduce the occupation of wiring space and are suitable for places that require a large number of branches.

Q: What are the advantages of easy branching optical cables?

A: The advantages of easy branching optical cables include high flexibility, space saving, simplified maintenance, and cost reduction.

Q: What scenarios are suitable for easy branching optical cables?

A: Easy branching optical cables are suitable for environments that require flexible wiring and a large number of branches, such as office buildings, data centers, campus networks, etc.
